GEN2+ IMAGE INTENSIFIER TUBE
The QCNV Q4 series of Gen2+ image intensifier tubes amplifies available light to provide visible images in low-light environments. With green and white phosphor options, the series offers configuration choices for night vision device manufacturers and system integrators. Explore the specifications below to select a tube for your optical system and application requirements.
QCNV Q4 IIT
Key Features
Three Performance Grades
Choose Q4-B, Q4-A or Q4-A+, with FOM ranges of 1,400–1,600, 1,600–1,800 and 1,800–2,000, respectively. All three grades offer resolution of ≥64 lp/mm.
Four Configuration Options

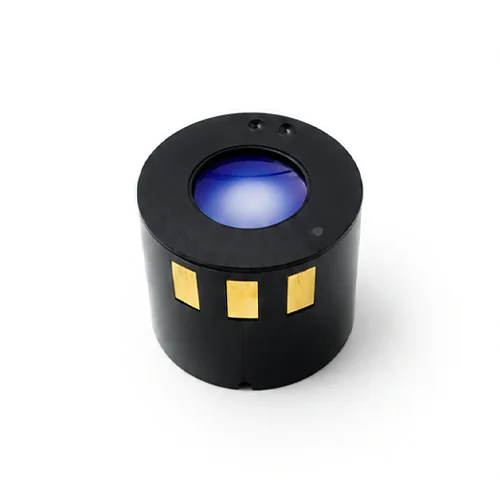

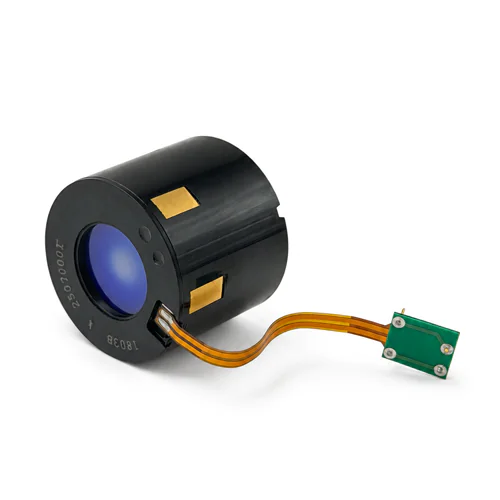

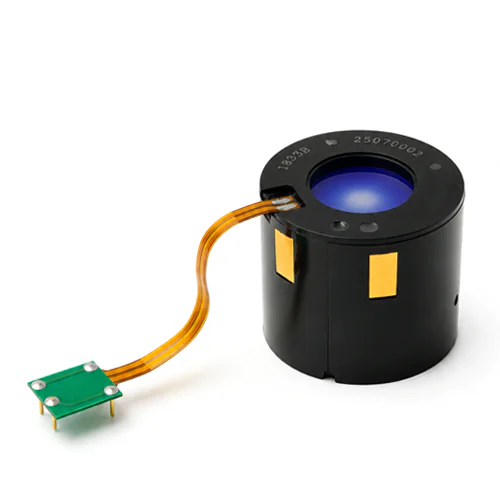

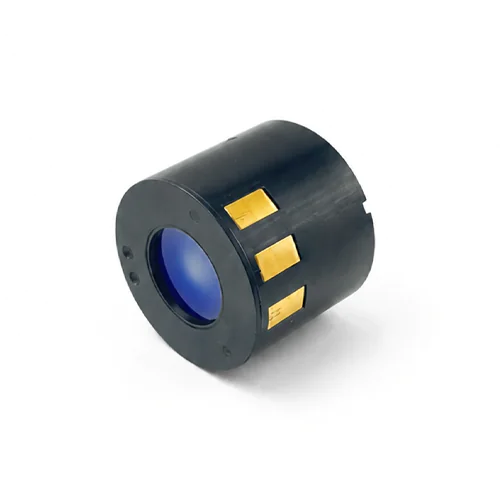

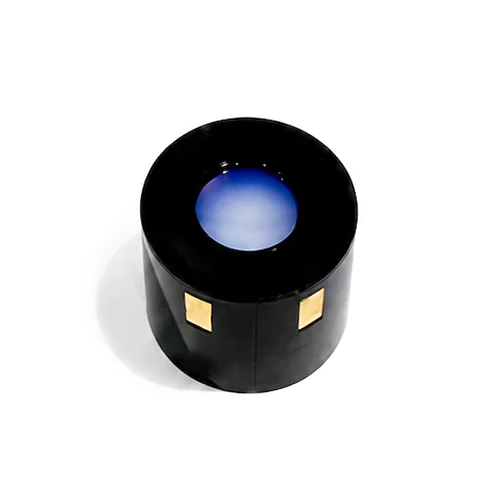

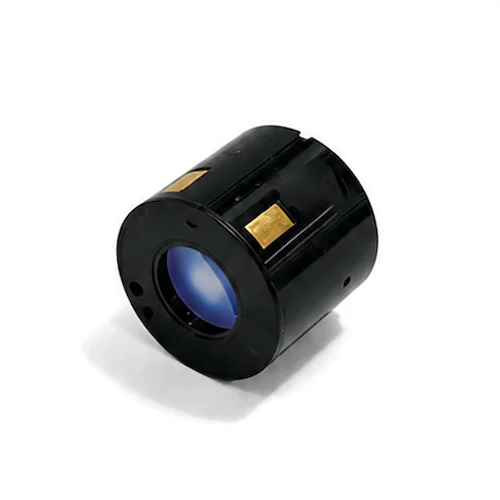

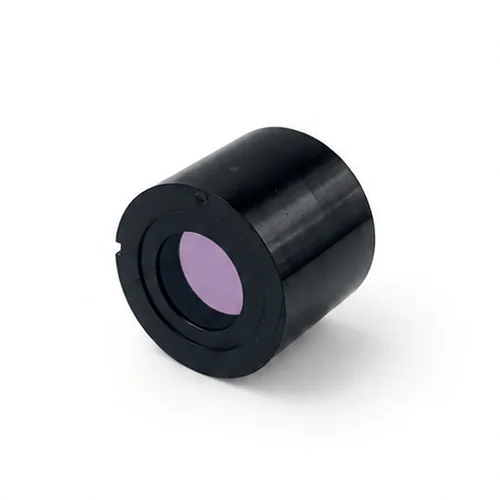

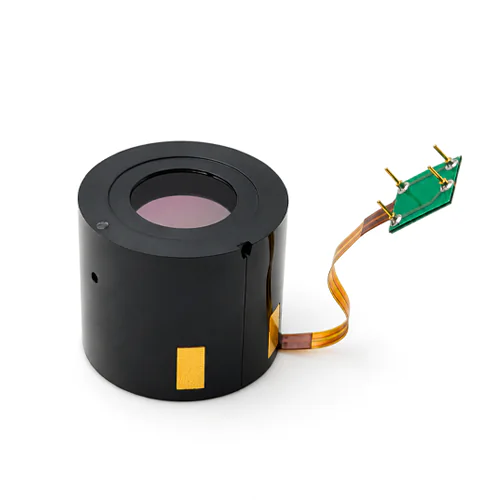

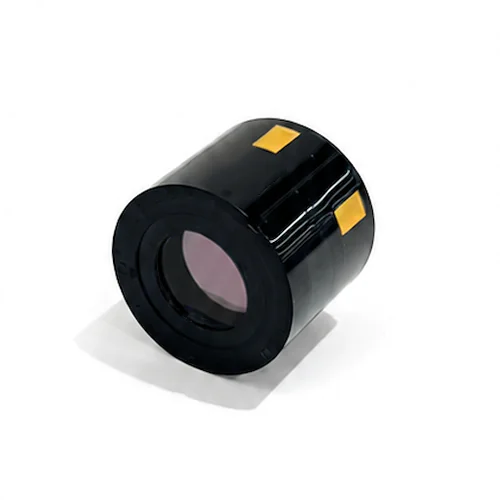

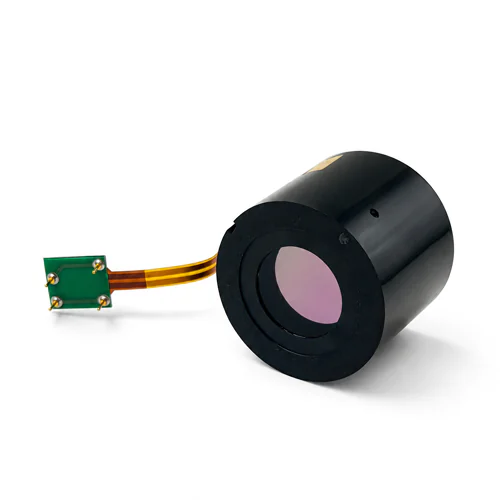

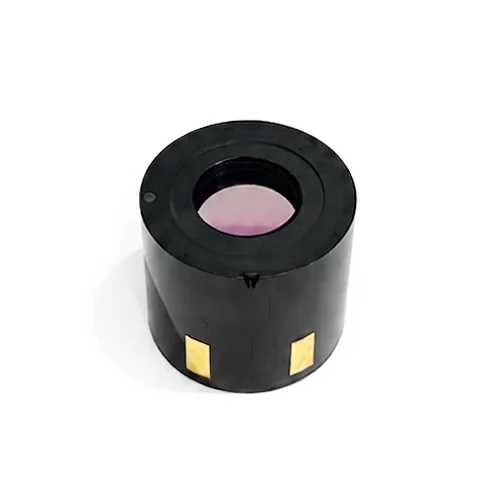

Available in 2-contact, 3-contact, pigtail cable and integrated-type configurations. Select the appropriate format to match your device’s mechanical and electrical requirements.
Green & White Phosphor
Choose P43 green phosphor or P45 white phosphor to suit your preferred image appearance and night vision system configuration.
Power Supply & Gain Options
Power supply options include non-gated and auto-gated versions, with external gain or brightness adjustment options depending on the selected configuration.
Grade-Based Signal-to-Noise Ratio
Minimum SNR is ≥22 for Q4-B, ≥25 for Q4-A and ≥29 for Q4-A+, providing defined performance levels for your low-light imaging requirements.
Wide Operating Temperature Range
Specified for operation from −45°C to +55°C and storage from −45°C to +70°C, with a tube weight of ≤75 g.

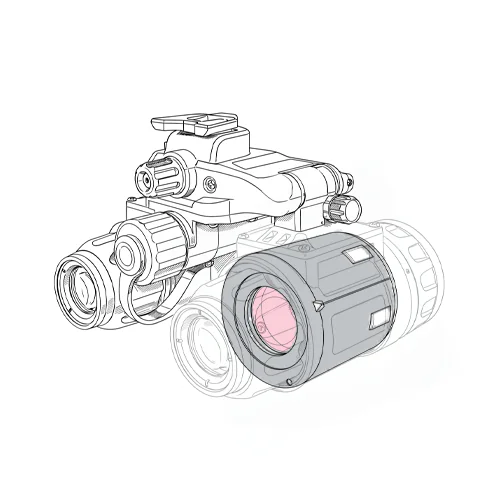

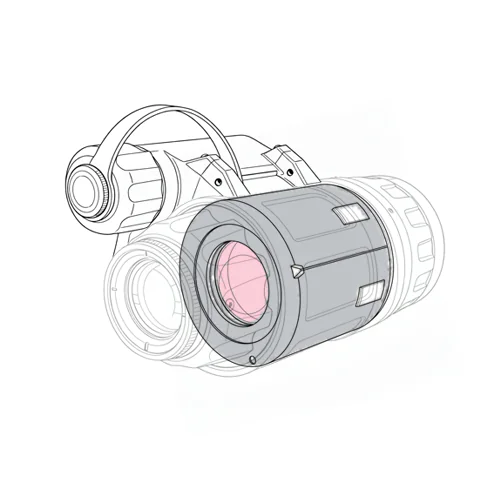

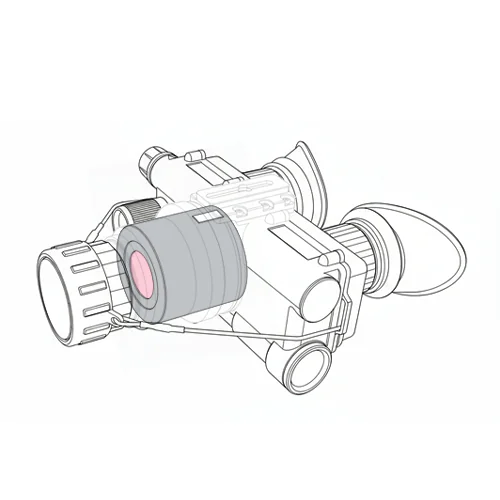

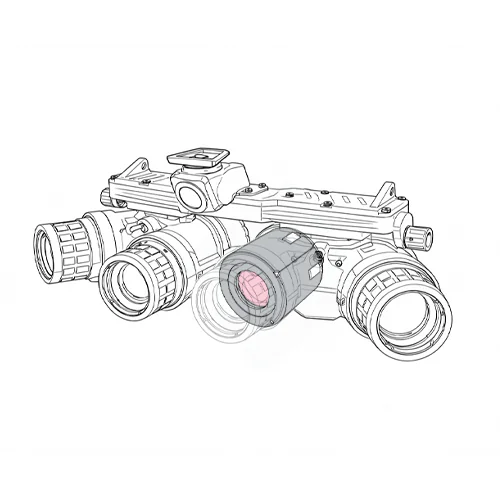

IIT Device & Setup Views
Explore image intensifier tube layouts across monocular, dual-tube binocular, single-tube biocular, and panoramic night vision configurations.
Drawings illustrate different night vision configurations. Please confirm tube format, electrical interface, and device compatibility before ordering.
QCNV Q4 IIT SPECIFICATIONS
Technical Data
Performance by Grade
| Parameter | Q4-B | Q4-A | Q4-A+ |
|---|---|---|---|
| Figure of Merit (FOM) | 1,400–1,600 | 1,600–1,800 | 1,800–2,000 |
| Resolution (lp/mm) | ≥64 | ≥64 | ≥64/68 |
| Signal-to-Noise Ratio (SNR) | ≥22 | ≥25 | ≥29 |
| Photocathode Sensitivity (µA/lm) | 650 | 750 | 1,000 |
| Luminance Gain (cd/m²/lx) | ≥8,000 | ≥12,000 | ≥12,000 |
| Maximum Output Brightness (cd/m²) | 5–10 | 5–10 | 5–10 |
| Equivalent Background Illumination (EBI) (µlx) | ≤0.25 | ≤0.25 | ≤0.25 |
Photocathode & Phosphor
| Tube Generation | Gen2+ |
|---|---|
| Photocathode Useful Diameter | ≥17.5 mm |
| Cathode Material | Na₂KSb(Cs) |
| Phosphor Options | P43 Green / P45 White |
Input & Output Windows
| Input Window | AVG Glass |
|---|---|
| Output Window Options |
Inverting Spherical (SR40) Inverting Flat Non-inverting Spherical (SR40) Non-inverting Flat |
Power Supply & Control
| Input Voltage | 2.2–3.4 V |
|---|---|
| Input Current @ 3 V | ≤20 mA |
| Power Supply Options | Non-gated / Auto-gated / External Gain Adjustment / External Brightness Adjustment |
Configurations & Interfaces
| Configuration Options | 2-contact / 3-contact / Pigtail Cable / Integrated Type |
|---|---|
| Electrical Interface Options | Contact Type / Lead Type / Pigtail |
Physical & Environmental
| Weight | ≤75 g |
|---|---|
| Operating Temperature | −45°C to +55°C |
| Storage Temperature | −45°C to +70°C |
Configuration, interface, phosphor and power supply options depend on the selected tube. Please specify your requirements when requesting a quotation.
