PVS-14
PVS 14 NIGHT VISION GOGGLES
The PVS-14 is a versatile night vision monocular designed for handheld observation or hands-free use with compatible head and helmet mounts. Its single-eye design lets users view their surroundings through the device while keeping the other eye available for natural vision, offering flexible use for nighttime navigation and outdoor observation.
PVS-14
Key Features
Manual Gain Control
Adjust image brightness manually to suit changing ambient light and your viewing preference.
Automatic Bright-Light Cutoff
Automatically shuts off under excessive light to help protect the image intensifier tube.
Monocular Viewing
Provides night vision for one eye while leaving the other eye available for unaided observation of the surroundings.
Flexible Mounting Options
Use it handheld, head-mounted, or helmet-mounted with compatible accessories for different observation needs.
Lightweight Design
A compact, lightweight body keeps the setup easy to carry and helps limit the load during head- or helmet-mounted use.
Rugged Construction
A durable housing supports regular field handling and practical use during outdoor nighttime observation.

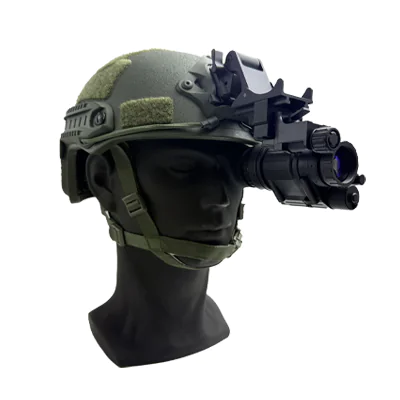

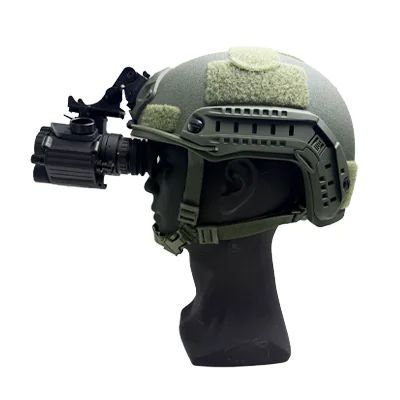

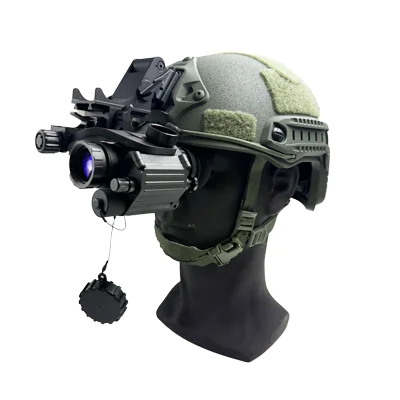

Device & Setup Views

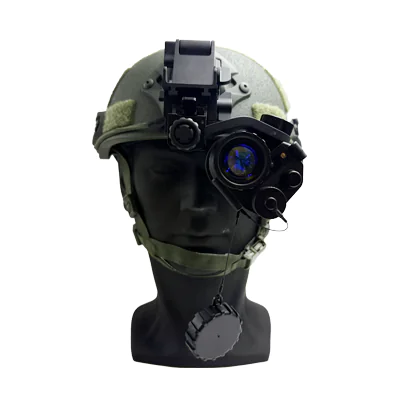

Explore the PVS-14 helmet-mounted setup from multiple angles, including front and side views.
Setup images illustrate mounting configurations. Confirm compatible mounts, helmet accessories, and package contents when ordering.
PVS-14 SPECIFICATIONS
Technical Data
| Magnification | 1× (3× lens configuration) |
|---|---|
| Objective Lens | F/1.2 |
| Field of View | 40° |
| Focus Range | 25 cm to infinity |
| Diopter Adjustment | −6 to +2 D |
|---|---|
| Eye Relief | 25 mm |
| Adjustment | Manual, via control knob |
|---|
| Battery Type | 1 × AA battery |
|---|---|
| Battery Life | 40+ hours |
| Weight | 290 g (without battery) |
|---|---|
| Dimensions | 109 × 58 × 74 mm |
| Optical Compatibility | Carson and RPO 3.0 optical components |
|---|---|
| Image Intensifier FOM Options | 1,400–2,400+ |

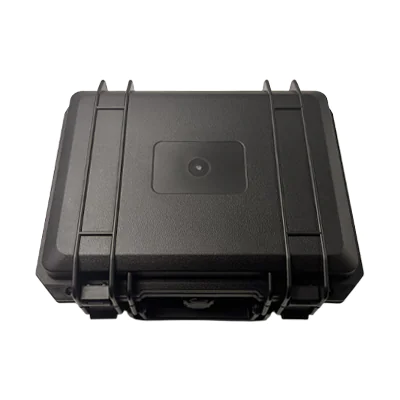

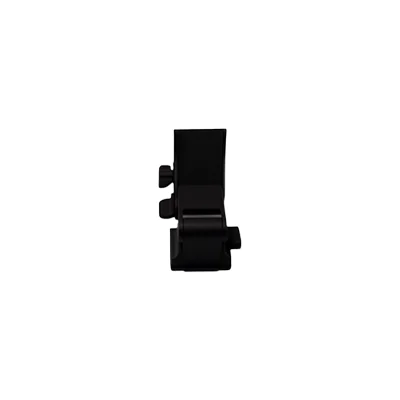

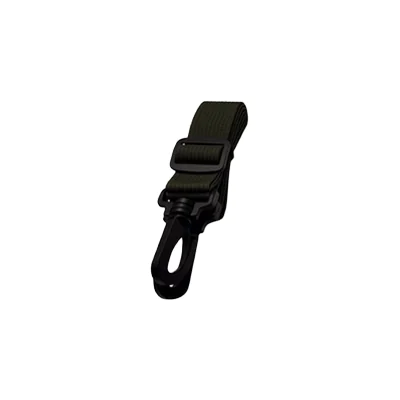

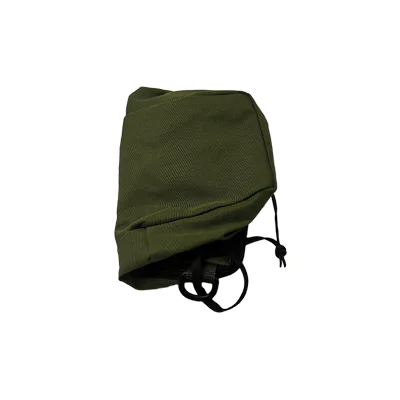

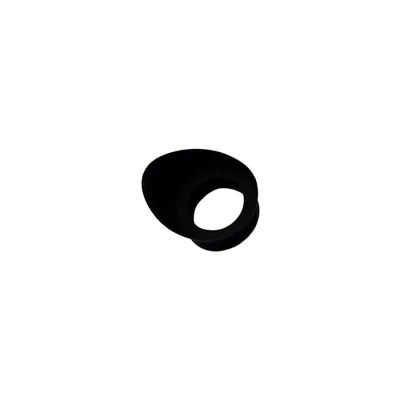

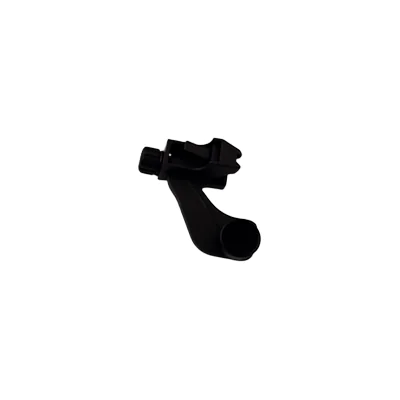

Accessories
PVS-14 RANGE REFERENCE
Night Vision Range Reference
The observation distances shown are reference values. Actual performance may vary depending on ambient light, weather, target contrast, and device configuration.
PVS-14 IMAGING
Night Vision Imaging Views
Explore PVS-14 imaging examples with white phosphor and green phosphor image intensifier tubes.
01 White Phosphor IIT
A white phosphor imaging example showing the scene in monochrome tones.
02 Green Phosphor IIT
A green phosphor imaging example showing the scene in traditional green tones.
