GEN3 IMAGE INTENSIFIER TUBE
The QCNV Q5 series of Gen3 image intensifier tubes amplifies available light to provide visible images in low-light environments. With green and white phosphor options, the series offers configuration choices for night vision device manufacturers and system integrators. Explore the specifications below to select a tube for your optical system and application requirements.
QCNV Q5 IIT
Key Features
Two Performance Grades
Choose Q5-B or Q5-A, with FOM ranges of 2,000–2,200 and 2,200–2,400, respectively. Resolution is specified at ≥64 lp/mm for Q5-B and ≥64/68 lp/mm for Q5-A.
Four Configuration Options
Available in 2-contact, 3-contact, pigtail cable and integrated-type configurations. Select the appropriate format to match your device’s mechanical and electrical requirements.
Green & White Phosphor
Choose P43 green phosphor or P45 white phosphor to suit your preferred image appearance and night vision system configuration.
Power Supply & Gain Options
Power supply options include auto-gating, with external gain or brightness adjustment options depending on the selected configuration.
Grade-Based Signal-to-Noise Ratio
Minimum SNR is ≥32 for Q5-B and ≥35 for Q5-A, providing defined performance levels for your low-light imaging requirements. Both grades use a Gen3 GaAs photocathode.
Wide Operating Temperature Range
Specified for operation from −45°C to +55°C and storage from −45°C to +70°C, with a tube weight of ≤75 g.
IIT Device & Setup Views

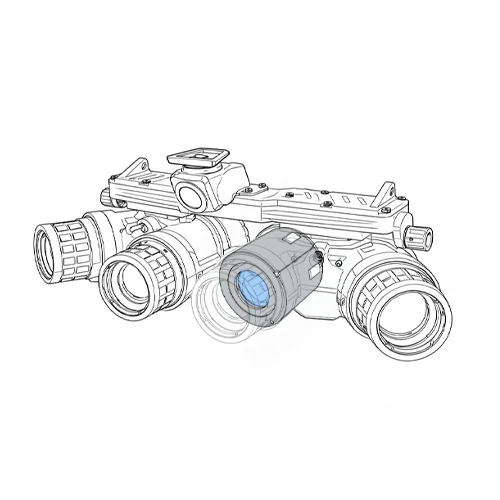

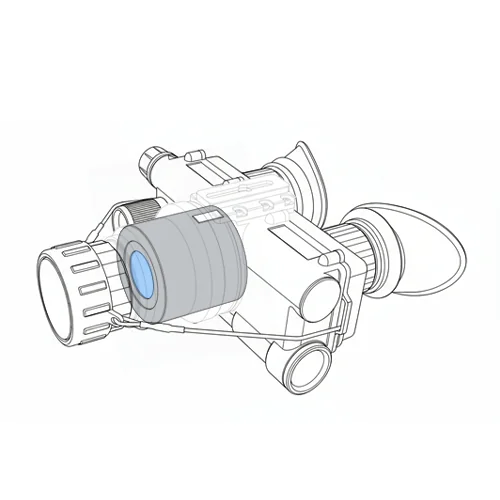

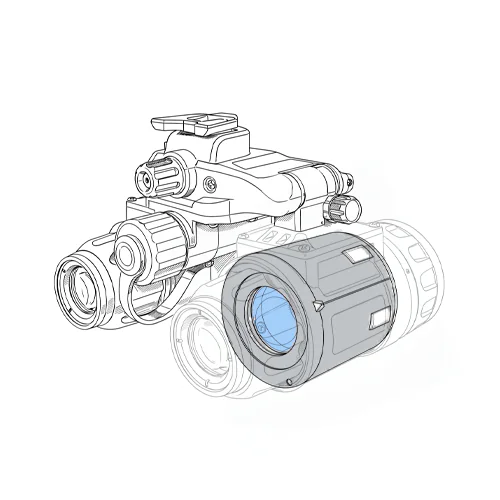

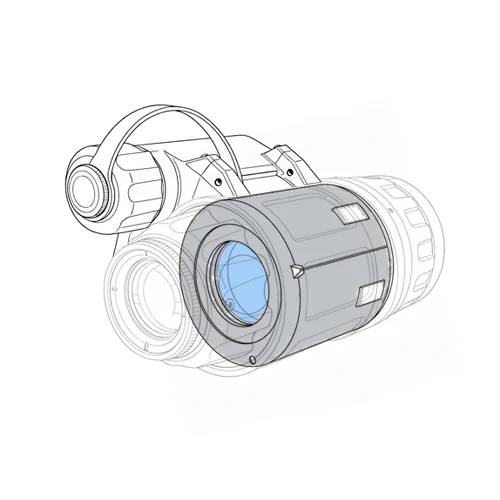

Explore Gen3 image intensifier tube layouts across monocular, dual-tube binocular, single-tube biocular, and panoramic night vision configurations.
Drawings illustrate different night vision configurations. Please confirm tube format, electrical interface, and device compatibility before ordering.
QCNV Q5 IIT SPECIFICATIONS
Technical Data
Performance by Grade
| Parameter | Q5-B | Q5-A |
|---|---|---|
| Figure of Merit (FOM) | 2,000–2,200 | 2,200–2,400 |
| Resolution (lp/mm) | ≥64 | ≥64/68 |
| Signal-to-Noise Ratio (SNR) | ≥32 | ≥35 |
| Photocathode Sensitivity (µA/lm) | ≥1,800 | ≥2,000 |
| Luminance Gain (cd/m²/lx) | ≥15,000 | ≥15,000 |
| Maximum Output Brightness (cd/m²) | 8–12 | 8–12 |
| Equivalent Background Illumination (EBI) (µlx) | ≤0.25 | ≤0.25 |
Photocathode & Phosphor
| Tube Generation | Gen3 |
|---|---|
| Photocathode Useful Diameter | ≥17.5 mm |
| Photocathode Material | GaAs |
| Phosphor Options | P43 green / P45 white |
Power Supply & Control
| Input Voltage | 2.2–3.4 V |
|---|---|
| Input Current @ 3 V | ≤25 mA |
| Power Supply | Gated |
| Control Options | External gain adjustment / External brightness adjustment |
Optical Windows & Interfaces
| Input Window | AVG glass |
|---|---|
| Output Window Options | Inverting spherical (SR40) / Inverting flat / Non-inverting spherical (SR40) / Non-inverting flat |
| Electrical Interface | Contact type / Lead type / Pigtail |
| Configuration Options | 2-contact / 3-contact / Pigtail cable / Integrated type |
Mechanical & Environmental
| Tube Weight | ≤75 g |
|---|---|
| Operating Temperature | −45°C to +55°C |
| Storage Temperature | −45°C to +70°C |
Specifications vary by grade and configuration. Please confirm the selected tube's resolution, interface, optical window, and control options before ordering.
