1450 NIGHT VISION GOGGLES
The MNVD 1450 is a compact night vision monocular designed for observation in low-light environments. Its single-eye viewing design allows users to observe through the device while keeping the other eye available for unaided vision, supporting nighttime navigation and outdoor observation.

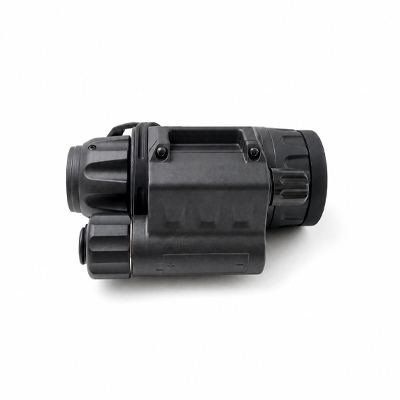

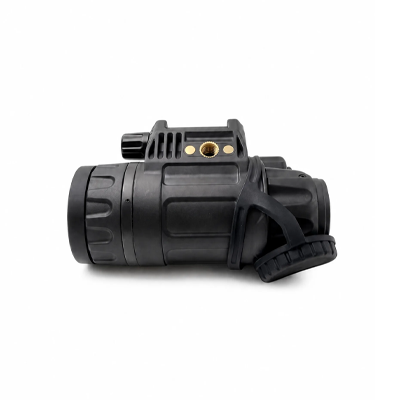

MNVD 1450
Key Features
Manual Gain Control
Use the gain control knob to adjust image brightness to suit ambient light conditions and your viewing preference.
Wide Field of View
A 50° ± 2° field of view provides a broad view of the surrounding scene for nighttime navigation and observation.
Monocular Viewing
Provides night vision for one eye while leaving the other available for unaided observation of your surroundings.
GEN2+ / GEN3 Tube Options
Choose GEN2+ or GEN3 image intensifier tubes to match your configuration requirements and purchasing needs.
Lightweight Design
Weighing 260 g without the battery, the compact monocular is easy to carry and helps limit the load of a helmet-mounted setup.
Helmet-mounted Setup
Pair the device with compatible helmet-mounting accessories for hands-free viewing during nighttime observation.
Device & Setup Views

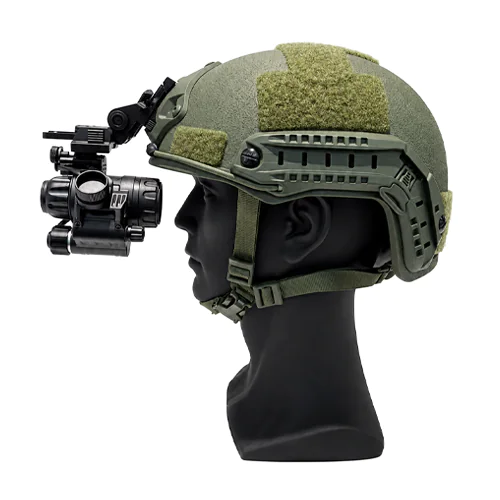

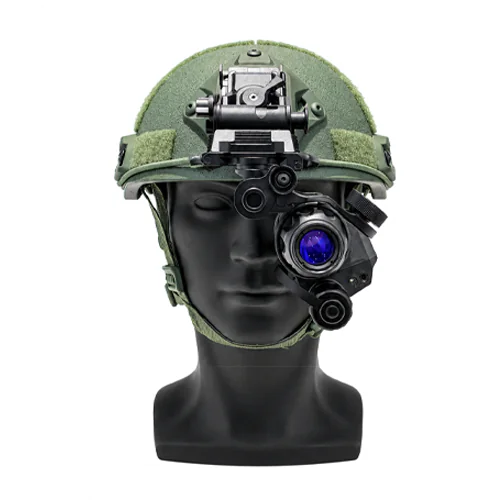

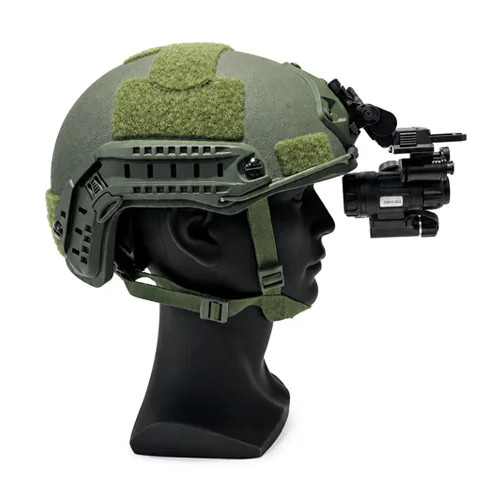

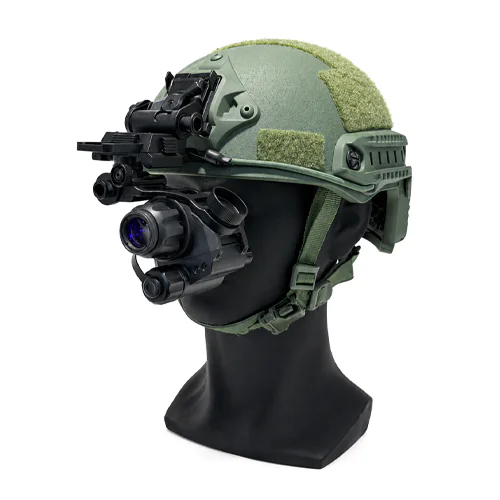

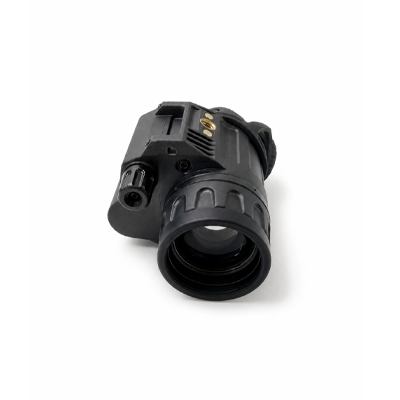

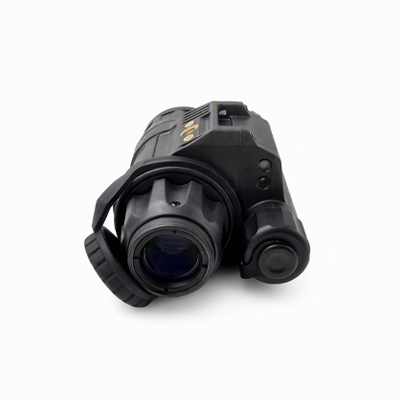

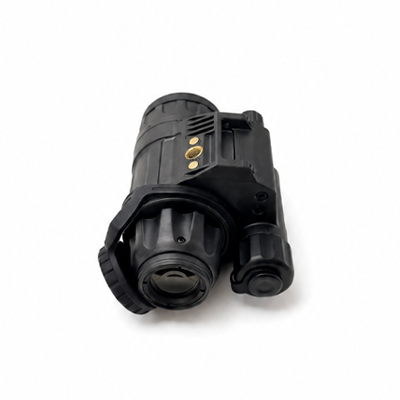

Explore the MNVD 1450 helmet-mounted setup, with an overall view and close-up details of the device and mounting arrangement.
Setup images illustrate mounting configurations. Confirm compatible mounts, helmet accessories, and package contents when ordering.
MNVD 1450 SPECIFICATIONS
Technical Data
Optical System
| Magnification | 1× ± 0.05× |
|---|---|
| Field of View | 50° ± 2° |
| Focus Range | 25 cm to infinity |
| Optical Distortion | <2% |
| Relative Illumination | >70% |
| Objective Lens Coating | Ultra-wideband multilayer anti-reflection coating |
Eyepiece
| Diopter Adjustment | −6 to +2 D |
|---|---|
| Eye Relief | 25 mm |
| Exit Pupil Diameter | 14 mm |
Gain Control
| Adjustment | Manual, via control knob |
|---|---|
| Brightness Levels | 6 levels |
Power Supply
| Battery Type | 1 × AA or 1 × CR123A battery |
|---|---|
| Battery Life | 30 hours |
Physical
| Weight | 260 g (without battery) |
|---|---|
| Dimensions | 105 × 55 × 70 mm |
Image Intensifier Options
| Image Intensifier | GEN2+ / GEN3 |
|---|---|
| Resolution Options | 60 / 64 / 68 lp/mm |
Infrared Illumination
| Wavelength | 850 nm |
|---|---|
| IR Output Power | 20 mW |

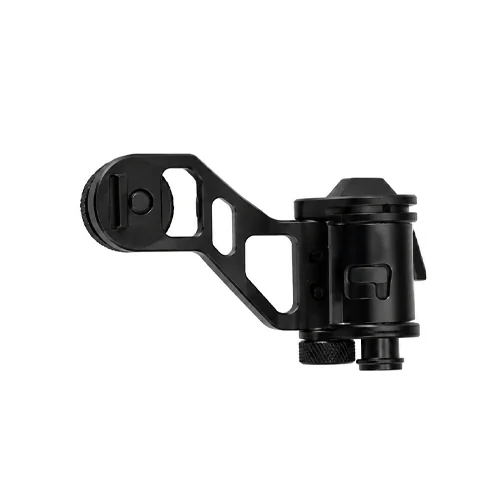

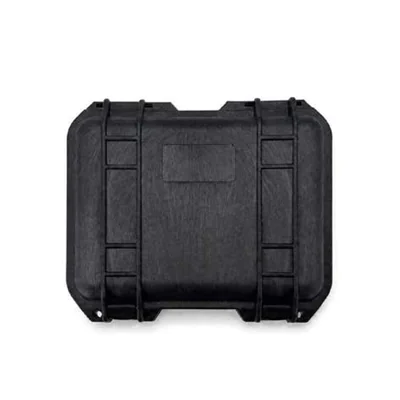

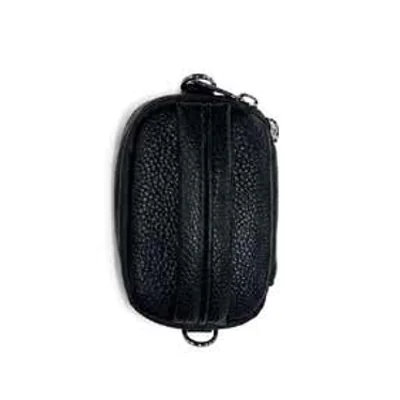

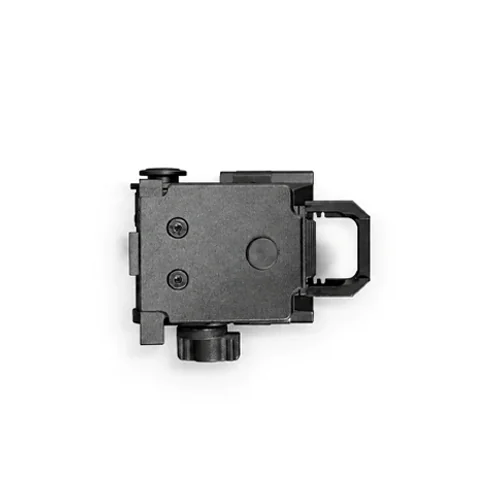

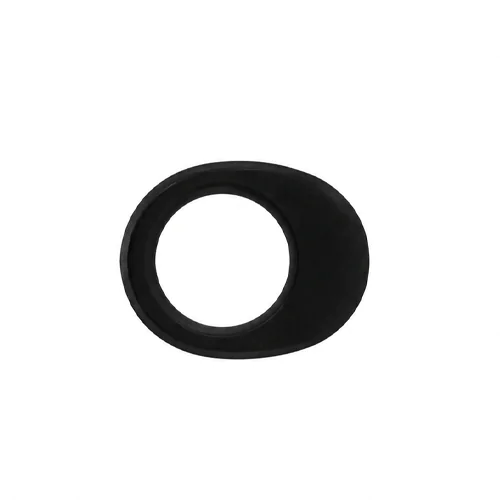

Accessories
FOM 1,800 CONFIGURATION REFERENCE
Night Vision Observation Range
Ambient Light: 0.01 lux Image Intensifier: FOM 1,800
These supplied reference distances apply to a FOM 1,800 configuration at an ambient light level of 0.01 lux. Applicability to the MNVD 1450 is pending confirmation. Actual performance may vary with ambient light, weather, target size and contrast, and device configuration.
MNVD 1450 VIDEO SHOWCASE
Explore the MNVD 1450
Take a closer look at the MNVD 1450, from its compact monocular design to helmet-mounted use and low-light viewing.
Product Overview
Explore the compact monocular design and exterior details of the MNVD 1450.
Helmet-mounted Setup
Pair the device with compatible helmet-mounting accessories for hands-free viewing.
Night Vision Imaging
Discover single-eye night vision for navigation and observation in low-light environments.
