GODZILLA-M
Multi-purpose Thermal Imager
The GODZILLA-M is a multi-purpose infrared thermal imaging device featuring a shutterless design and AI-ISP image processing. Equipped with a 0.6-inch, 1,920 × 1,080 OLED display, it supports app connectivity, photo capture and video recording, with long battery life for extended observation.
GODZILLA-M
Key Features
High-performance Infrared Detection
A 60 Hz frame rate and NETD < 25 mK support smooth thermal viewing and sensitivity to small temperature differences.
Four-in-one Versatility
Supports handheld, head-mounted, thermal sight and clip-on configurations, offering multiple ways to use one device.
High-resolution OLED Display
A 0.6-inch, 1,920 × 1,080 OLED display presents thermal imagery in a compact viewing format.
Compact Body
Measuring 130 × 70 × 55 mm and weighing ≤ 340 g without battery, GODZILLA-M keeps its multi-purpose design compact.

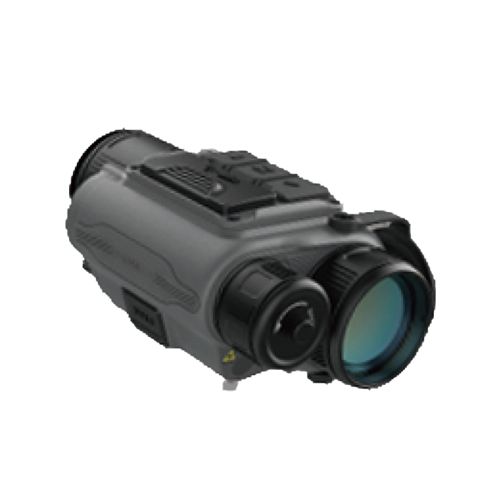

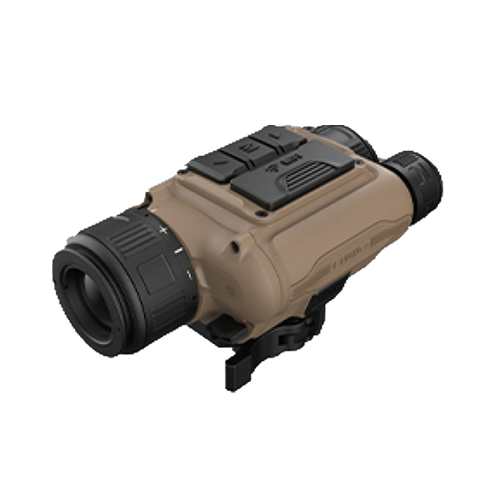

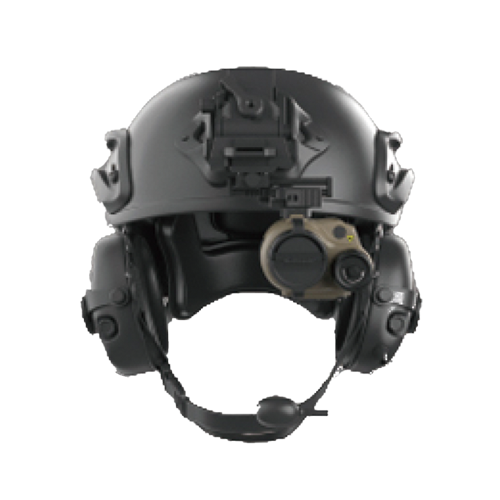

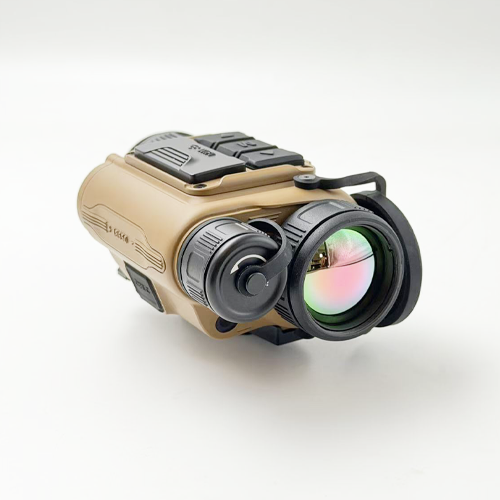

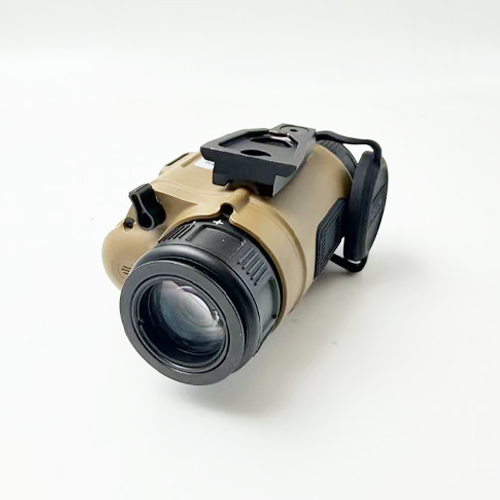

Device & Setup Views
Explore the device design and examples of GODZILLA-M paired with supporting equipment.
Setup images illustrate configurations. Confirm compatible mounts and package contents when ordering.
GODZILLA-M SPECIFICATIONS
Technical Data
| Sensor Resolution | 640 × 512 pixels, 12 μm |
|---|---|
| Frame Rate | 60 Hz |
| Focal Length | 30 mm |
| FOV (H × V) | 14.6° × 11° |
| System Magnification | 1.2× |
| Digital Zoom | 0.5× / 1× / 2× / 4× |
| Wavelength | 630 nm |
|---|
| Operating Mode | Clip-on, Thermal Sight, Head-mounted, Handheld |
|---|---|
| PIP | Yes |
| Ballistic Calculation | Yes |
| Photo Taking / Video Recording | Yes |
| Standby Mode | Yes |
| Clean Mode | Yes |
| Screen Type | 0.6-inch OLED |
|---|---|
| Resolution | 1,920 × 1,080 |
| Exit Pupil Distance | 25 mm |
|---|---|
| Diopter | −5 to +3 D |
| On-board Storage | 64 GB |
|---|
| Dimensions (W × H × D) | 130 × 70 × 55 mm |
|---|---|
| Weight | ≤ 340 g (without battery) |
| Battery Type | 1 × 18650 lithium battery |
|---|---|
| Battery Life | > 7 h |
| External Power Supply | 5 V DC |
|---|---|
| Wired Data | USB Type-C |
| Wireless | Wi-Fi, Bluetooth |
| Shock Resistance | 1,000 G, 0.3 ms, 1 Hz |
|---|---|
| Ingress Protection | IP67 |

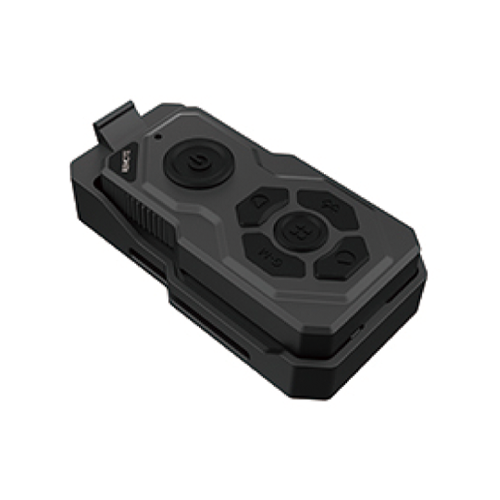

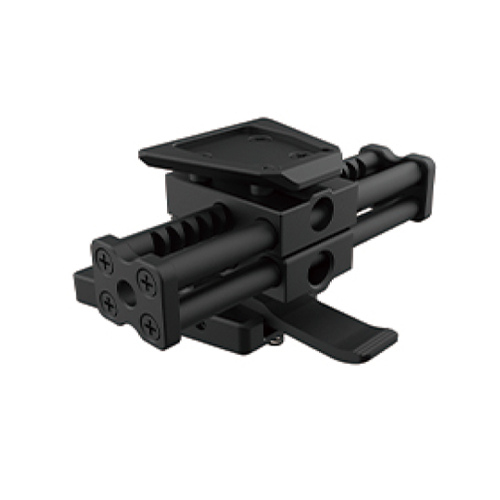

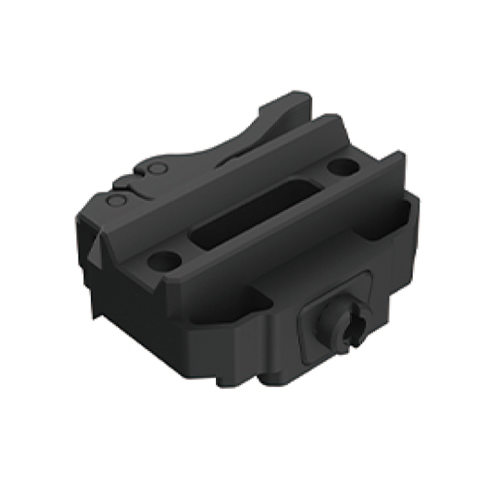

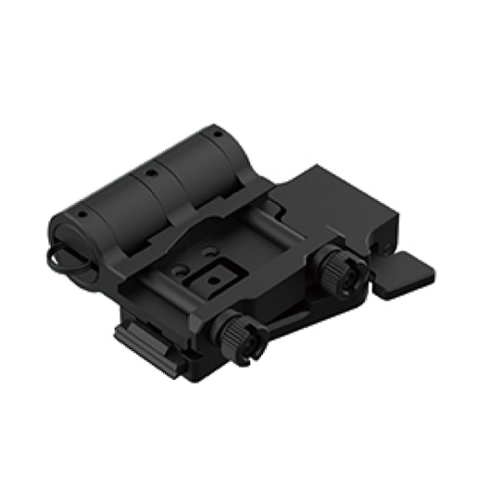

Accessories
GODZILLA-M PERFORMANCE
Infrared Range Performance
The calculation of these indicators is based on the target detectability division method defined in the Johnson criterion. The humanoid targetis defined as1.7m highand 0.5m wide, and the vehice target as 2.3m by 2.3m. The calculations assume standard environmental conditions and are based on the sensor specifications listed in the product Actual performance may vary due to environmental factors, atmospheric conditions, or operational settings

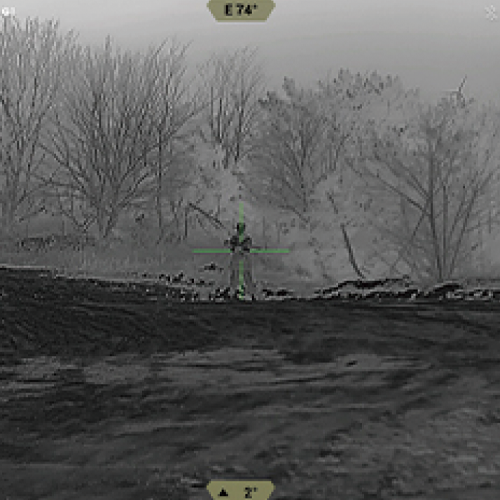

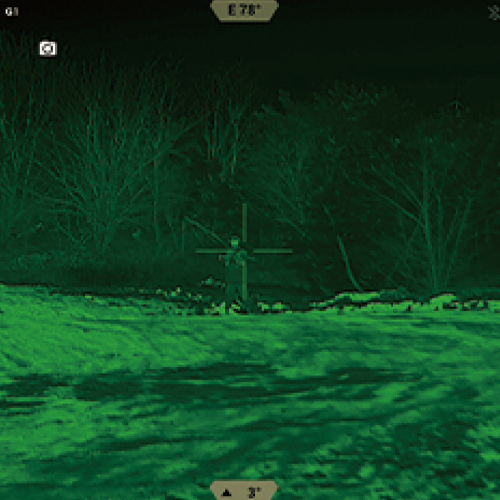

Thermal Imaging Views
Explore GODZILLA-M sample imagery in Black Hot, Green Hot and Iron palettes.
EXPLORE MORE
Explore More Night Vision & Thermal Products
Monocular Night Vision
PVS-14
Explore image-intensified night vision in a monocular format.
View Product

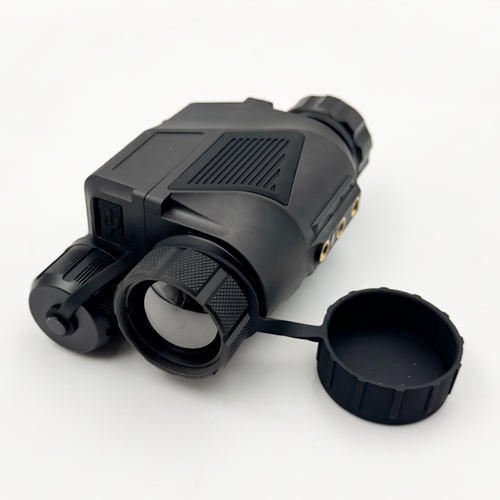

Multi-functional Thermal Monocular
