ELF-FB20

ENHANCED NIGHT VISION BINOCULAR GOGGLES

The ELF-FB20 combines image intensifier technology with infrared thermal imaging in a binocular night vision system. Highlight and Outline fusion modes bring thermal information into the low-light view, while its compact, lightweight design supports comfortable use.

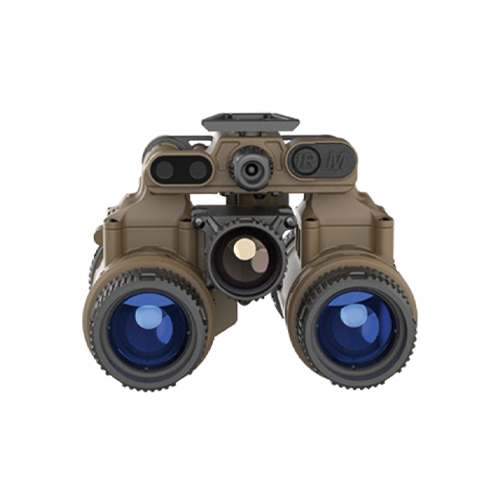

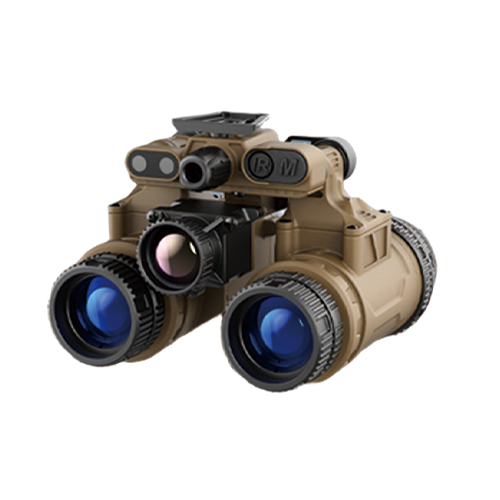

ELF-FB20

Key Features

Low-Latency Fusion Imaging

Fusion imaging with a latency of less than 30 ms.

Intelligent Fusion Algorithm

Combines low-light and thermal imaging information in a fused view.

Optical Performance

Low distortion and low chromatic aberration in low-light imaging.

ATAK Connectivity

Supports connection to the ATAK system.

Lightweight Design

A whole-unit weight of 550 g.

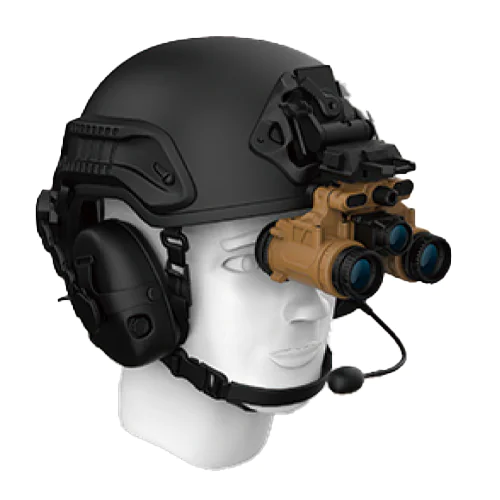

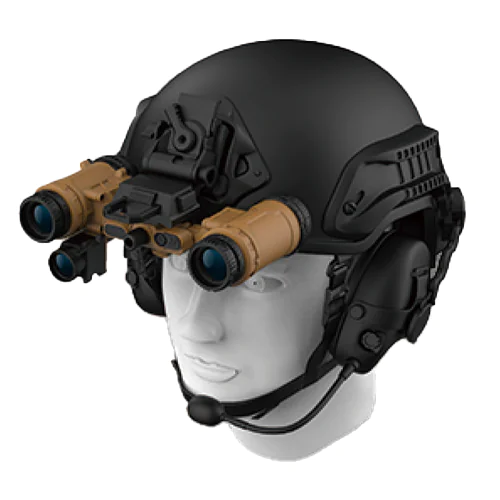

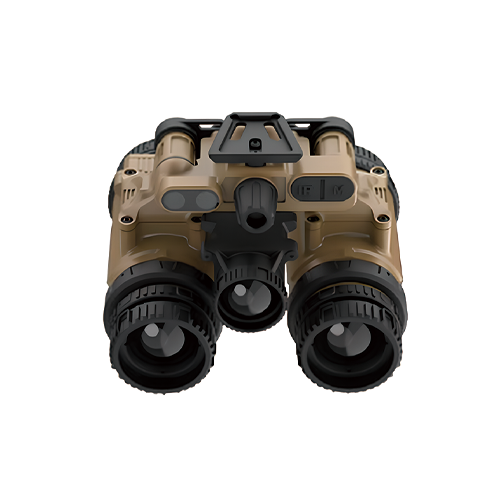

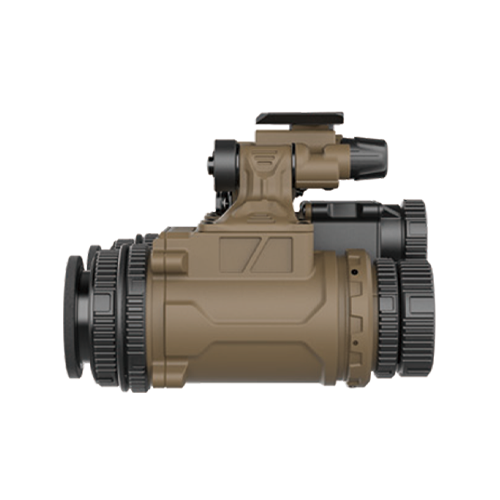

Device & Setup Views

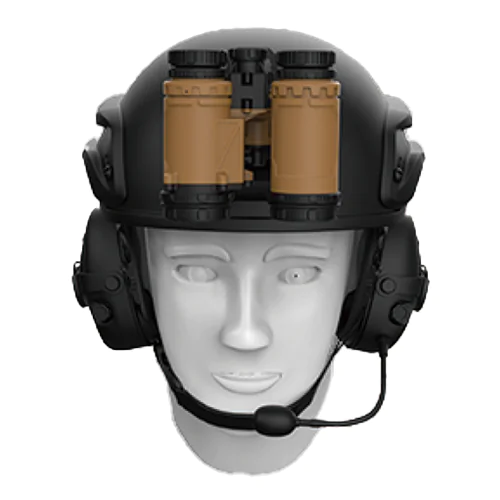

ELF-FB20 helmet setup with binoculars flipped up — 01Flip-Up View

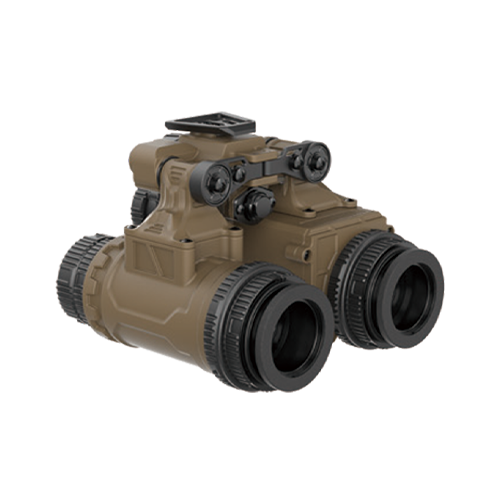

ELF-FB20

Technical Data

Optical General
Magnification	1×
Focus Range	250 mm ~ +∞
Focal Length	27 mm
FOV	40°

Image Intensifier Tube
Tube Type	GEN2+ / GEN3 (Optional)
Compatibility Range	18 mm (NWT, 10160, 11769)
Phosphor	White / Green
FOM	1,400 / 1,600 / 1,800 / 2,000

Thermal Channel
Resolution	640 × 512 pixels, 12 μm
Frame Rate	60 Hz
FOV (H × V)	24° × 20°

Others
Screen	OLED, 1,280 × 1,024
Compass	√
External GPS	√ (Optional)

Advanced Functions

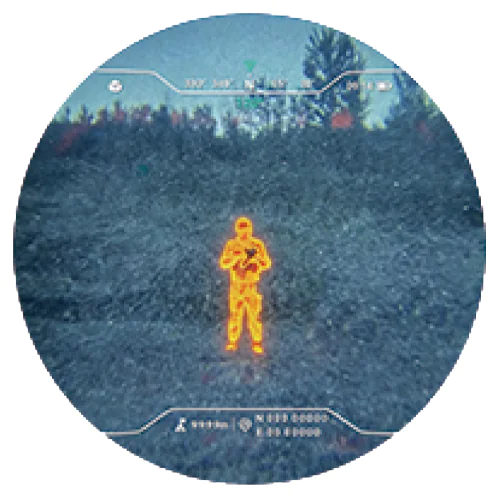

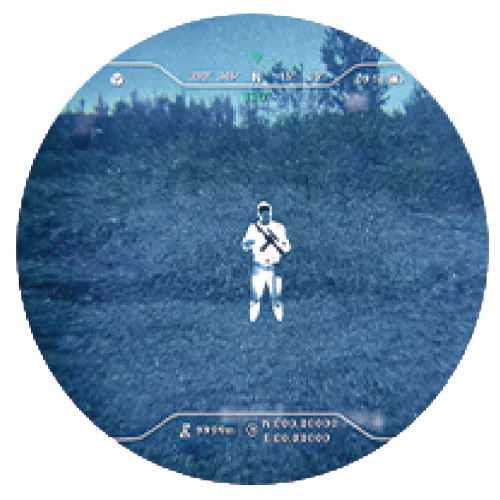

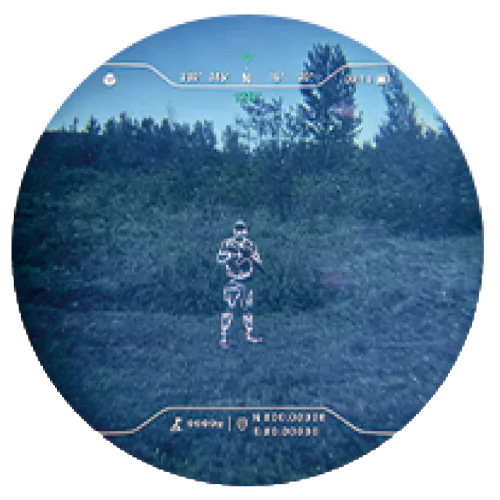

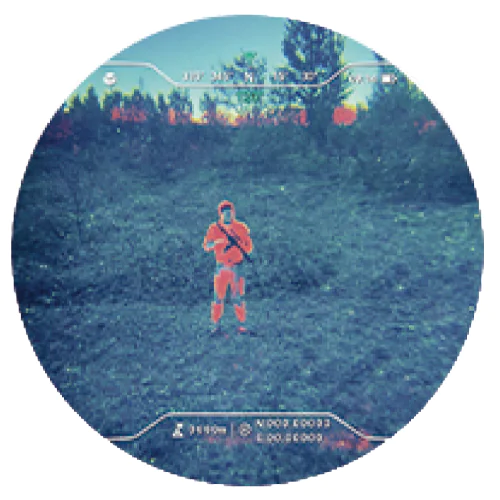

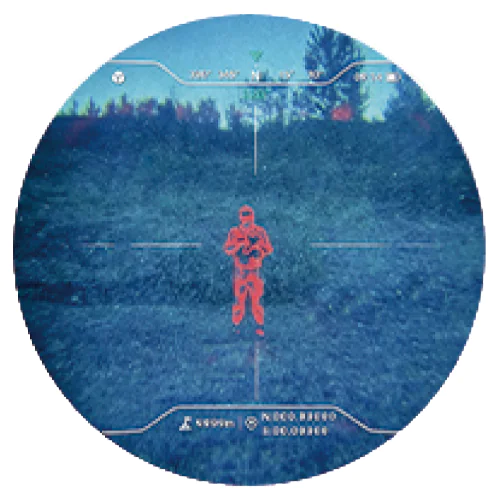

Image Fusion Modes	Highlight, Outline
Strong Light Protection	√
Auto Power-off	Flip-up, Turn on side
Brightness Control	√

Eyepiece
Exit Pupil Distance	25 mm
Diopter	−4 ~ +2 D
Spacing	55–72 mm

Physical
Dimensions (W × H × D)	105 mm × 110 mm × 87 mm
Weight	<540 g (no battery)
Mounting Interface	L4G24

Power Supply
Battery Type	Battery pack (2 × 18650)
Battery Life	8 h (Fusion) / 80 h (Night vision)

Environmental
Immersion	IP67

Accessories

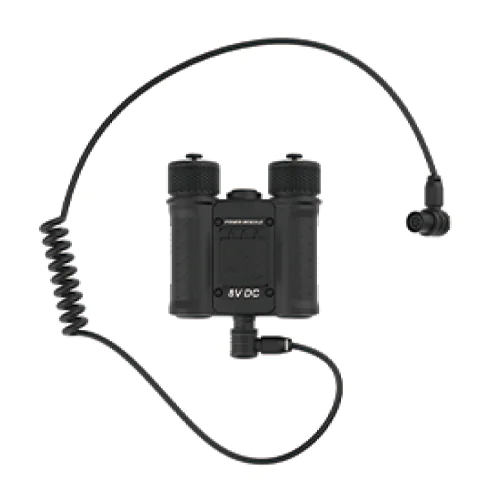

ELF-FB20 battery pack and cable — 01Battery Pack + Cable

ELF-FB20 PERFORMANCE

Infrared Range Performance

01Human

Detection: 1,230 m
Recognition: 410 m
Identification: 210 m

02Vehicle

Detection: 1,670 m
Recognition: 560 m
Identification: 280 m

Calculated using the target detectability method defined by the Johnson criterion, with a human target measuring 1.7 m high × 0.5 m wide and a vehicle target measuring 2.3 m × 2.3 m. Calculations assume standard environmental conditions and the listed sensor specifications. Actual performance may vary with environmental factors, atmospheric conditions and operational settings.
