3150 NIGHT VISION GOGGLES
The BNVD 3150 is a binocular night vision system designed for observation in low-light environments. Its dual-eye viewing design allows users to observe their surroundings with both eyes, supporting nighttime navigation and outdoor exploration.
BNVD 3150
Key Features
Wide Field of View
A 50° ± 2° field of view provides a broad viewing area for observing your surroundings in low-light conditions.
GEN2+ / GEN3 Tube Options
Available with GEN2+ or GEN3 image intensifier tubes, allowing you to select the configuration that suits your requirements.
Six Brightness Levels
Choose from six brightness levels to adjust the viewing brightness to your preference and surrounding light conditions.
1× Magnification
1× optical magnification provides an unmagnified view for nighttime navigation and observation of the surrounding area.
Adjustable Diopter
A −6 to +2 D diopter adjustment range lets users fine-tune eyepiece focus for their individual viewing needs.
Infrared Auxiliary Illumination
An 850 nm, 20 mW infrared light source provides auxiliary illumination when ambient light is insufficient.

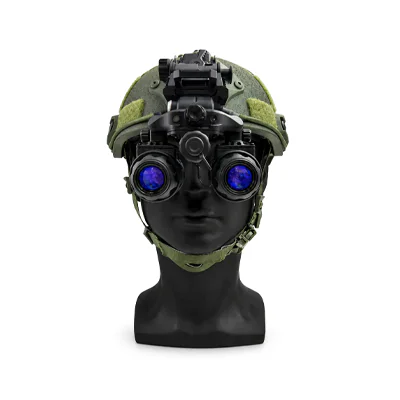

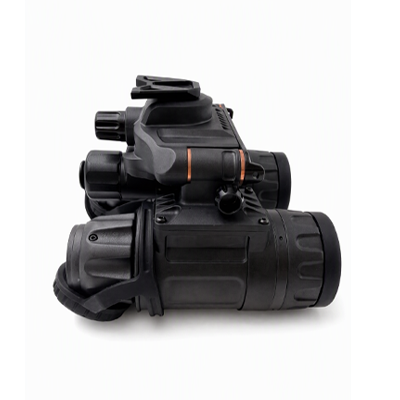

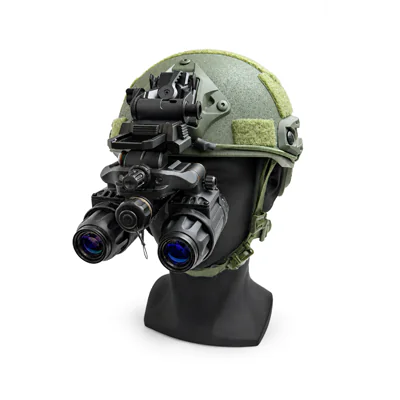

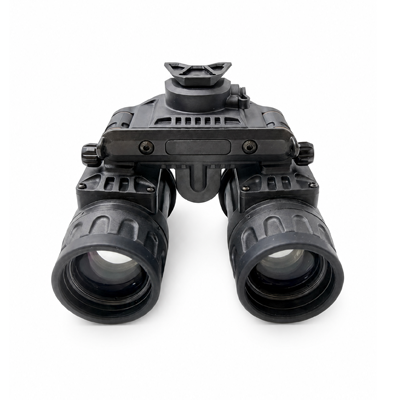

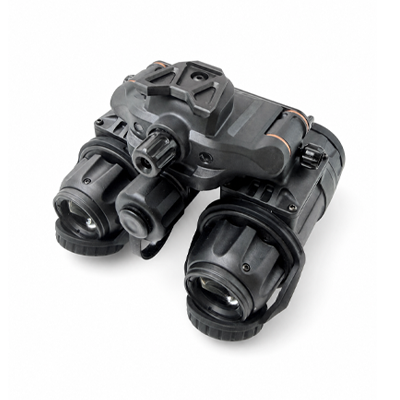

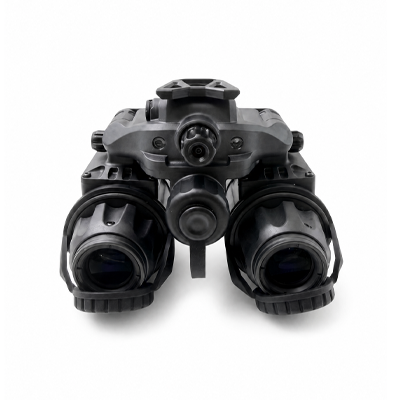

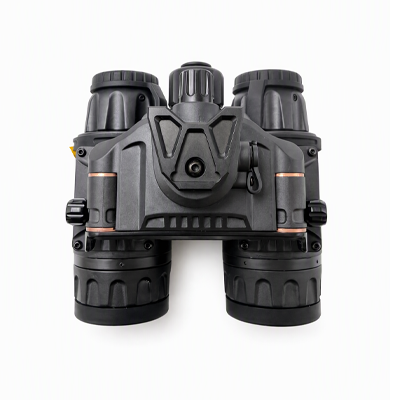

Device & Setup Views

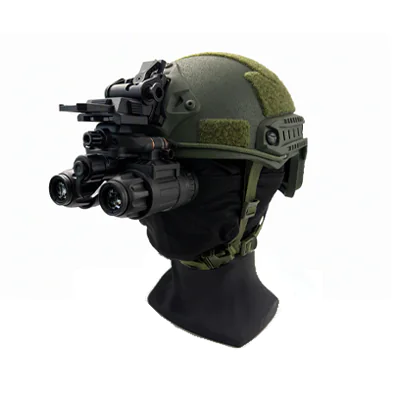

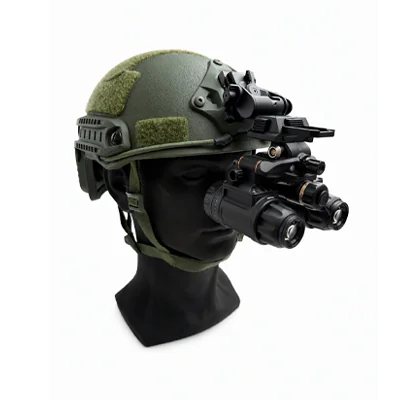

Explore the BNVD 3150 helmet-mounted setup from multiple angles, including front and three-quarter views.
Setup images illustrate mounting configurations. Confirm compatible mounts, helmet accessories, and package contents when ordering.
BNVD 3150 SPECIFICATIONS
Technical Data
Optical System
| Magnification | 1× ± 0.05× |
|---|---|
| Field of View | 50° ± 2° |
| Focus Range | 25 cm to infinity |
| Optical Distortion | ≤2% |
| Relative Illumination | >70% |
| Objective Lens Coating | Ultra-wideband multilayer anti-reflection coating |
Eyepiece
| Diopter Adjustment | −6 to +2 D |
|---|---|
| Eye Relief | 25 mm |
| Exit Pupil Diameter | 14 mm |
Gain Control & Illumination
| Gain Control | Universal control knob |
|---|---|
| Brightness Levels | 6 levels |
| IR Auxiliary Light | 850 nm, 20 mW |
Power Supply
| Battery Type | 1 × AA or 1 × CR123A battery |
|---|---|
| Battery Life | 15–75 hours |
Physical
| Weight | 450 g (without battery) |
|---|---|
| Dimensions | 105 × 105 × 90 mm |
Image Intensifier Options
| Image Intensifier | GEN2+ / GEN3 |
|---|---|
| Resolution Options | 60 / 64 / 68 lp/mm |
| FOM Options | 1,400–2,400+ |

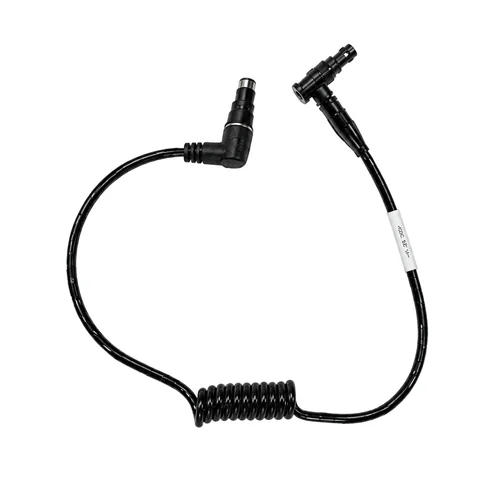

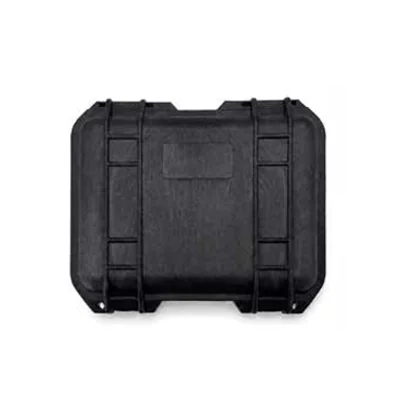

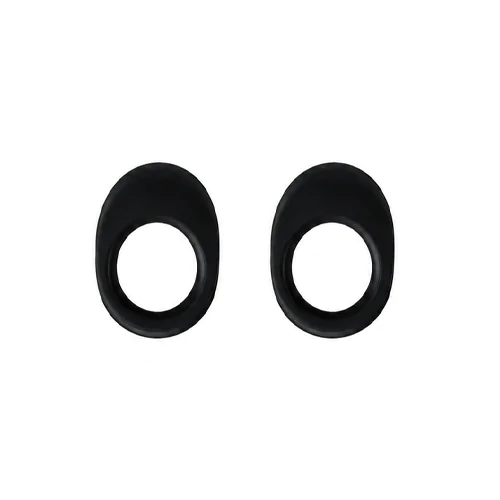

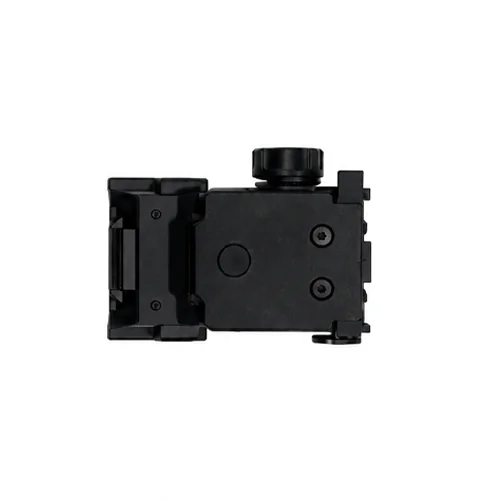

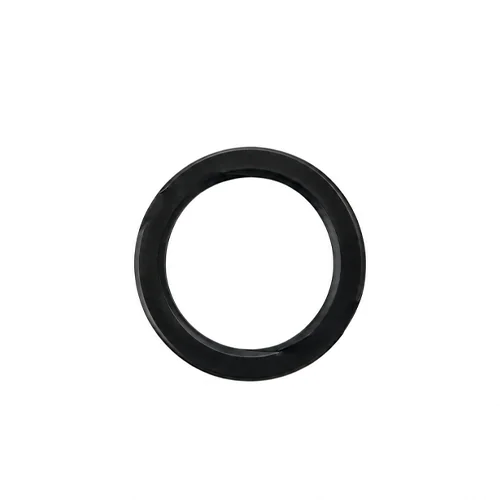

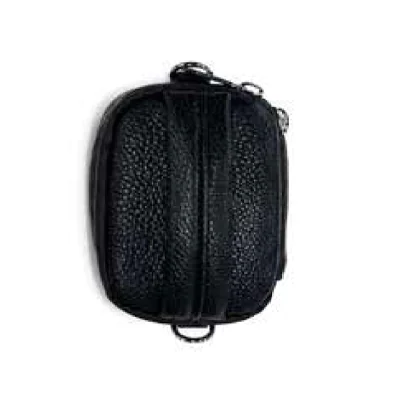

Accessories
The user manual and other small accessories are also included and shipped with the product.
BNVD 3150 RANGE REFERENCE
Night Vision Observation Range
The distances shown are reference values for the FOM 1,800 configuration at an ambient light level of 0.01 lux. Actual performance may vary depending on ambient light, weather, target size and contrast, and device configuration.
Field of View Comparison

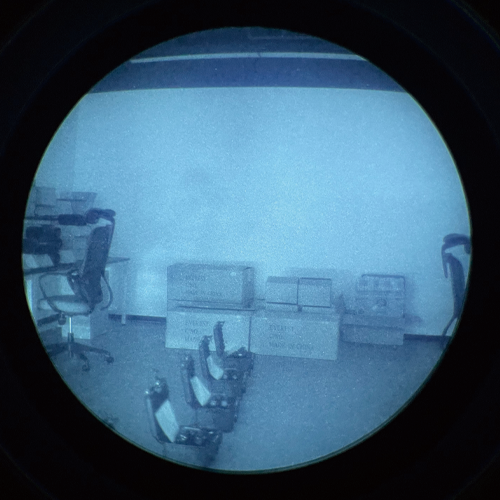

Compare the observation perspective of a conventional 40° field of view with the wider 50° FOV of BNVD 3150.
A more concentrated viewing perspective with a narrower horizontal observation range.
A wider viewing perspective provides greater peripheral observation coverage.
BNVD 3150 VIDEO SHOWCASE
Explore the BNVD 3150
Take a closer look at the BNVD 3150 through product views, a helmet-mounted demonstration, and night vision imaging footage.
Product Overview
Explore the binocular design and exterior details of the BNVD 3150.
Helmet-mounted Setup
See how the device looks when mounted on a helmet for hands-free viewing.
Night Vision Imaging
View night vision footage showing the imaging experience in low-light conditions.
