GODZILLA-FR
THERMAL-RED DOT HYBRID SIGHT
The GODZILLA-FR combines a red dot sight with thermal imaging in one compact hybrid device. Multiple viewing modes, including Highlight, Outline and Black Hot, display thermal information alongside the optical view, supporting observation in low-light and dark environments.
GODZILLA-FR
Key Features
Large Viewing Window
A 42 × 32 mm viewing window provides a broad optical view.
Five Viewing Modes
Choose from Red Dot, Highlight, Outline, Red Hot and Black Hot modes.
One-Button NV Compatibility
A dedicated NV button supports use with compatible night vision devices.
Extended Battery Life
Over 10 hours in thermal imaging mode and over 80 hours in red dot mode.

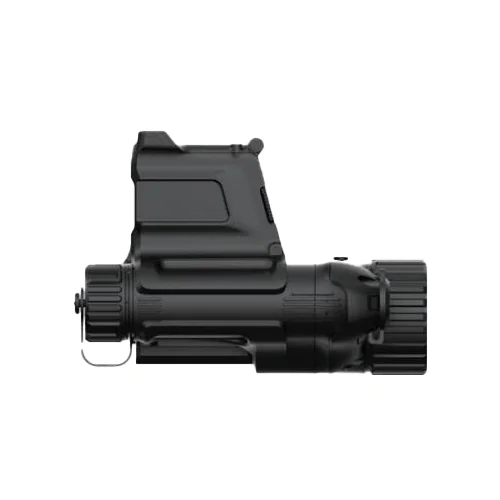

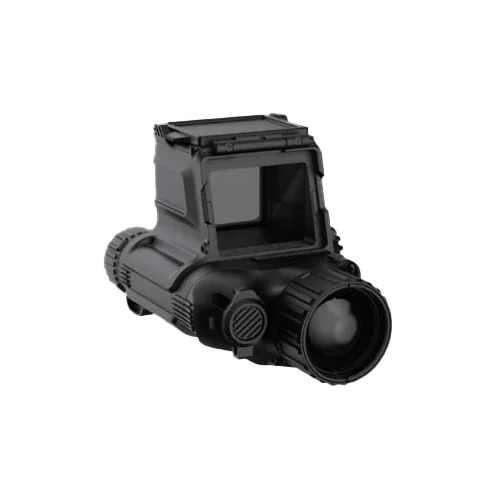

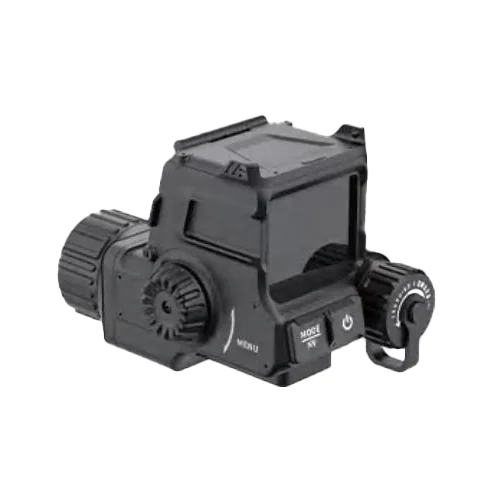

Device & Setup Views
GODZILLA-FR
Technical Data
| Sensor Resolution | 640 × 512 pixels, 10 μm |
|---|---|
| Frame Rate | 60 Hz |
| Focal Length | 31.5 mm / F1.0 |
| FOV (H × V) | 11.6° × 8.7° |
| System Magnification | 1× |
| Digital Zoom | 1× / 2× / 4× |
| Screen Type | OLED (Red only), 1,024 × 768 |
|---|---|
| Glass Window | 42 mm × 32 mm |
| Exit Pupil Distance | 50–200 mm |
| Image Format | Red Dot, Outline, Highlight, Red Hot, Black Hot |
|---|---|
| Reticle Type | Point, Circle + Point, Circle + Point + Reticle |
| Brightness Adjustment | 5 levels (Day Mode) / 3 levels (Night Mode) |
| Dimensions (W × H × D) | 129 mm × 84 mm × 87 mm (without Picatinny rail) |
|---|---|
| Weight | ≤555 g (including battery) |
| Battery Type | 1 × 18650 / 2 × CR123 / 2 × CR123A |
|---|---|
| Battery Life | >10 h (Thermal imaging) >80 h (Red dot) |
| External Power Supply | 5–24 V DC |
|---|---|
| Video Output | UVC |
| Wired Data | Serial port, USB |
| Shock Resistance | 1,000 G, 0.3 ms, 1 Hz |
|---|---|
| Immersion | IP67 |

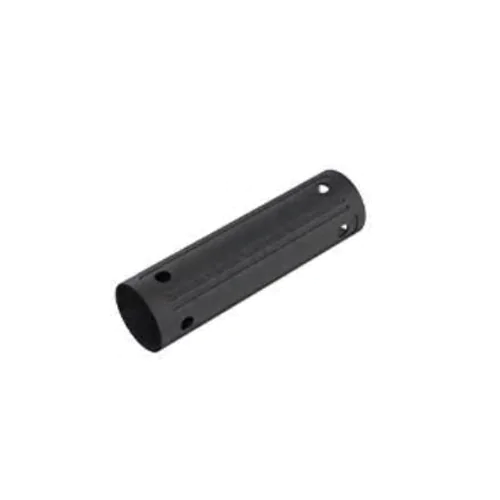

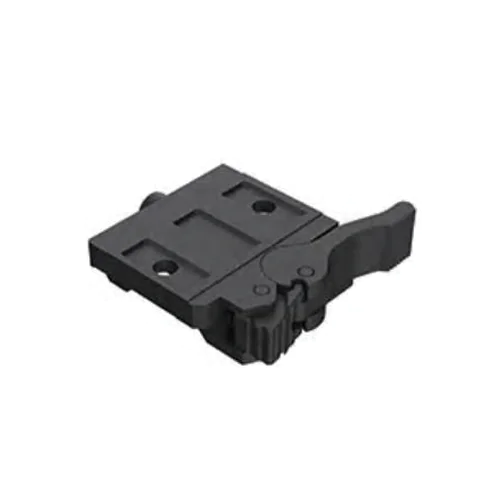

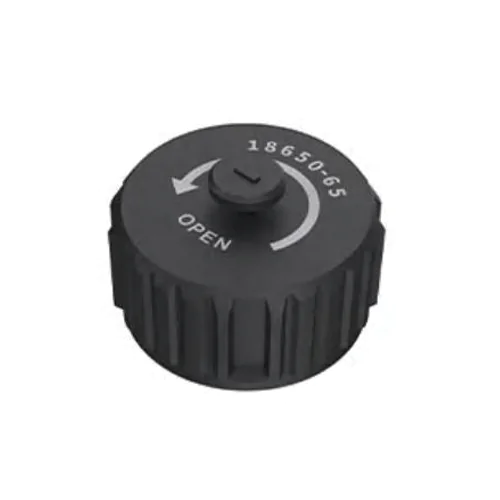

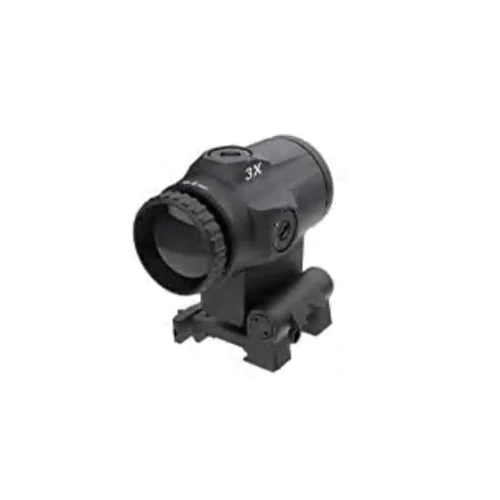

Accessories
GODZILLA-FR PERFORMANCE
Infrared Range Performance
Human
- Recognition
- 890 m
Calculated using the target detectability method defined by the Johnson criterion, with a human target measuring 1.7 m high × 0.5 m wide. Calculations assume standard environmental conditions and the listed sensor specifications. Actual performance may vary with environmental factors, atmospheric conditions and operational settings.

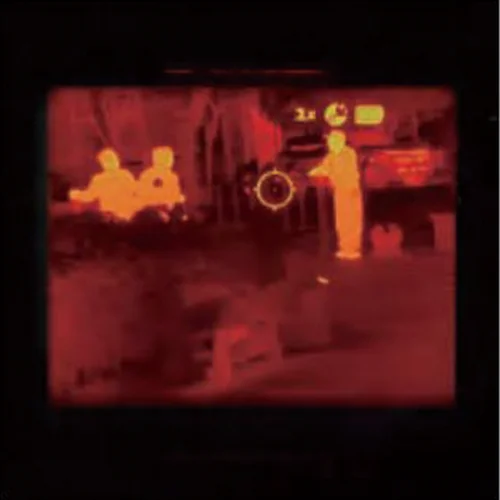

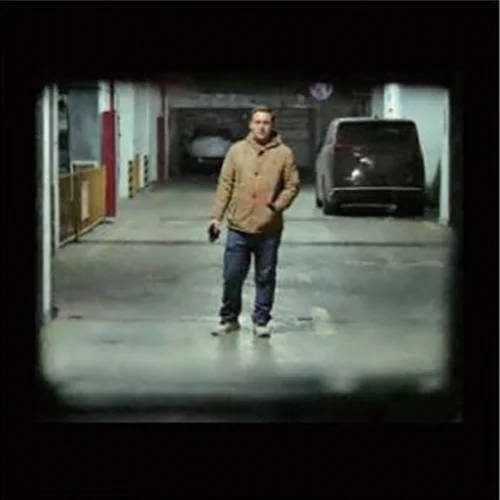

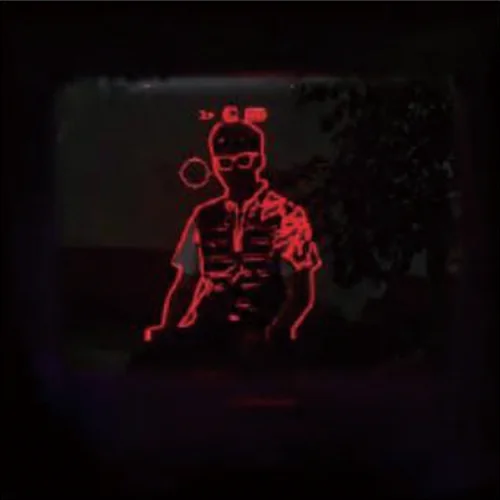

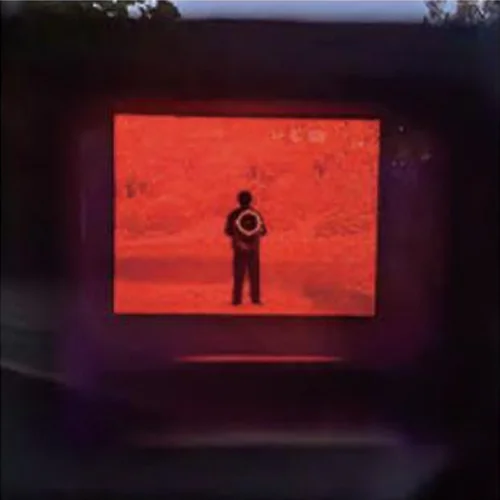

Imaging Modes & NVG View
